SIMAR - FX 3500 Hopper Loader

Why producers choose the SIMAR - FX 3500 Hopper Loader

• Gentle, closed-system vacuum feeding for tea, coffee and instant powders
• Compact stainless-steel receiver, easy to clean for fast product changeover
• 1.2 or 1.6 m² filter with automatic back-wash (2 m² jet filter on the FXP 3500-2)
• Feeds processing and packing machinery
• Draws material from sack-tipping units, drums, containers or silos
• Discharge via gravity flap, butterfly valve or airlock
• Intermittent, continuous or gentle suction-impulse conveying
• Programmable microprocessor/PLC control; conveying ducts DN 38–80

Overview

A stainless-steel vacuum hopper loader that feeds processing and packing machinery with whole beans, ground coffee, tea and instant powders — cleanly and gently, with automatic filter cleaning.

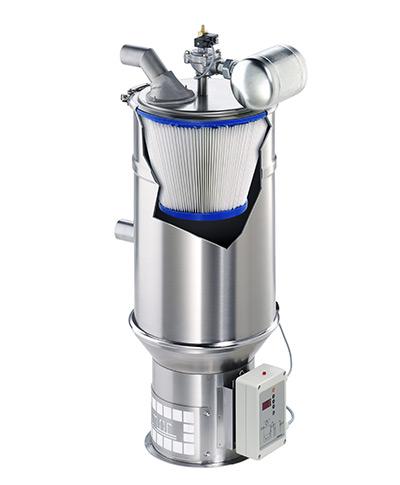

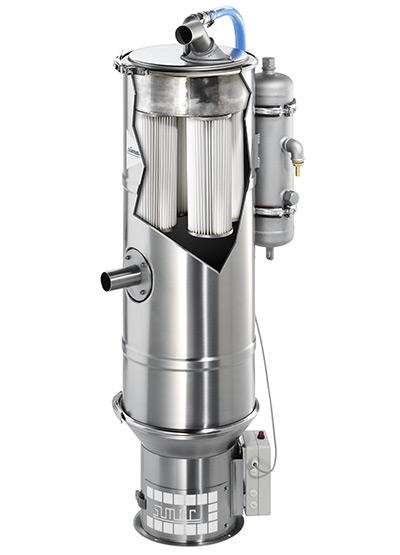

The FX 3500 is SIMAR's compact stainless-steel hopper loader for pneumatically conveying tea, coffee and instant products to feed processing and packing machines. It draws material from sack-tipping units, drums, containers or silos and delivers it in a closed system that protects the product from foreign matter and preserves its structure and taste. The receiver carries a large 1.2 or 1.6 m² filter with automatic back-wash — or, as the FXP 3500-2 version, a 2 m² jet filter for harder, free-flowing powders — with a separately sized vacuum pump matched to the required conveying capacity. Material discharges through a gravity flap, a butterfly valve or an airlock, and conveying can run intermittently, continuously or in SIMAR's especially gentle suction-impulse mode. Built in high-quality stainless steel for easy cleaning and fast product changeover and controlled by a programmable microprocessor/PLC with many options, it suits food and pharmaceutical production. Conveying ducts are available in DN 38, 50, 65 or 80.

Manufactured by Simar, Made in Germany

Specifications

Filter versions
