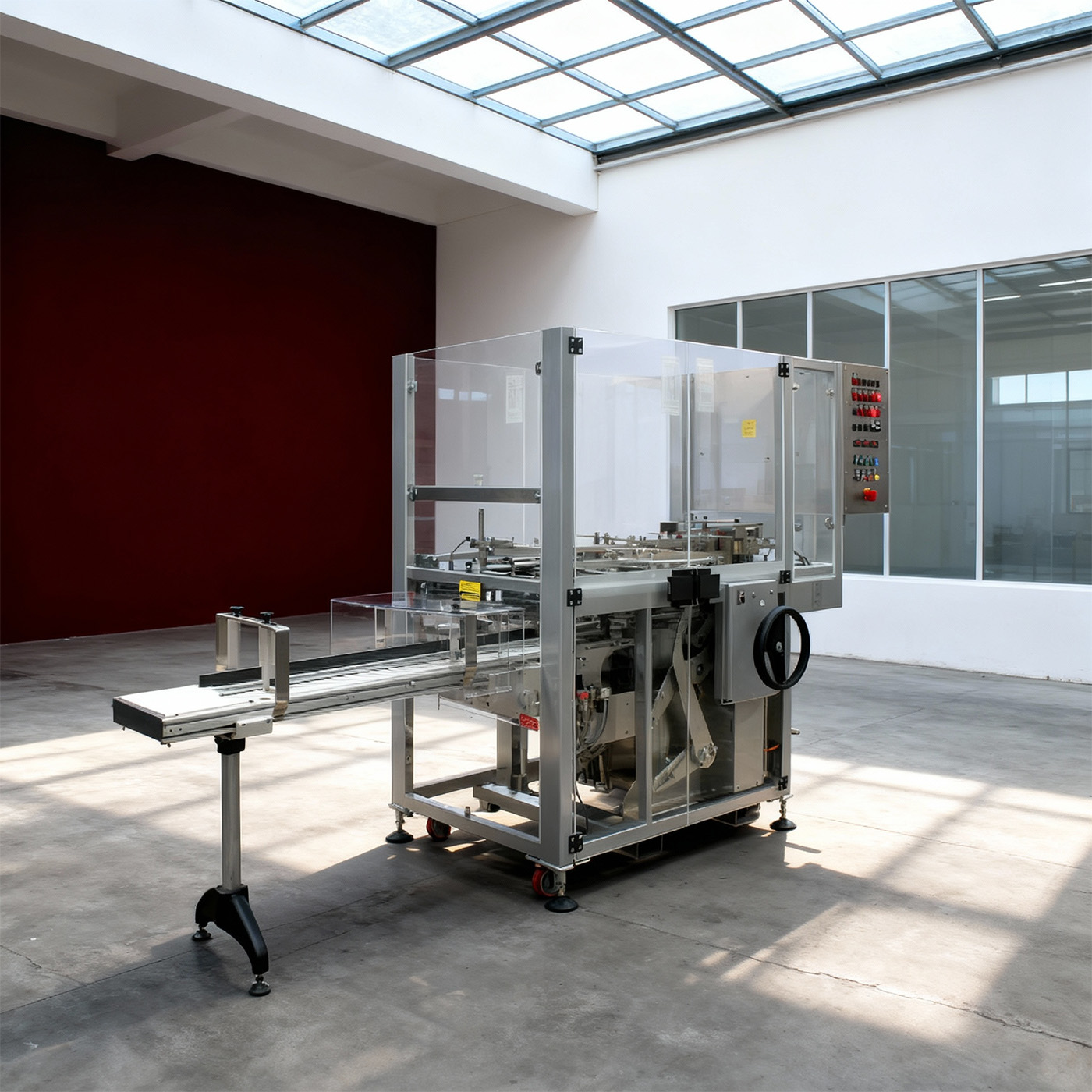

Name: Marden Edwards - ME B Series
Brand: Marden Edwards

Question 1

What is the Marden Edwards B Series?

Accepted Answer

A fully automatic base-seal overwrapping machine with cam-driven mechanics, quick-change tooling and an operator diagnostic panel, for high-volume wrapping. The B Series is intended for producers that need repeatable base-seal overwrapped packs with consistent presentation and controlled film handling. dph can match the machine configuration to the required pack dimensions, output and downstream equipment.

Question 2

How fast is the B Series?

Accepted Answer

Up to 60 packs per minute (standard), or 40 packs per minute on the B Wide. At rated speed, that equals approximately 3,600 finished packs per hour before allowance for changeovers and planned stops. Actual output depends on pack dimensions, film, product flow and the selected line configuration, so dph confirms capacity against the buyer's format before specification.

Question 3

What pack sizes does it handle?

Accepted Answer

Standard: length 50–305 mm, width 25–250 mm, height 10–150 mm. The B Wide handles longer packs up to 450 mm. The supported range allows producers to cover standard and B Wide formats on the same platform when the correct tooling is installed. Final dimensions, film specification and change parts are confirmed from sample packs before the machine is ordered.

Question 4

What is the B Wide version?

Accepted Answer

A wide-format B Series that wraps longer packs (up to 450 mm) at up to 40 packs per minute. The B Series is intended for producers that need repeatable base-seal overwrapped packs with consistent presentation and controlled film handling. dph can match the machine configuration to the required pack dimensions, output and downstream equipment.

Question 5

B Series vs ME BX — which should I choose?

Accepted Answer

Both run up to 60/min; the B Series is a cam-driven design with a diagnostic panel and a B Wide option for longer packs, while the ME BX is PLC/HMI-controlled. The choice therefore depends on required speed, pack-size range, control preference and future SKU plans. dph can calculate expected capacity and changeover needs from the buyer's actual product mix.

Question 6

Does it have diagnostics?

Accepted Answer

Yes—an operator diagnostic panel supports quick troubleshooting. This feature supports repeatable base-seal overwrapped packs during routine production and reduces dependence on manual correction. Its practical value should be assessed together with the required output, operator availability and planned SKU changes.

Question 7

Can it wrap tea and coffee packs?

Accepted Answer

Yes — Marden Edwards overwrapping machines are widely used in tea and coffee packaging for retail carton overwrapping, multi-pack bundling and premium gift presentation. Common applications include wrapping 25-bag or 50-bag tea cartons with a transparent PP film seal, overwrapping premium coffee tins or boxes, and producing multi-pack retail formats for supermarket supply in the Gulf, UK and European markets. dph can advise on film specification and tooling for specific pack formats.

Question 8

Is it built for high volume?

Accepted Answer

Yes — the Marden Edwards B Series is designed for sustained high-volume production, with a cam-driven mechanical system that is inherently suited to continuous multi-shift operation. Cam-driven designs have fewer electronic components that can fail under thermal stress, which makes them well suited to factory environments in the Gulf where ambient temperatures can be demanding. The B Series's diagnostic panel further supports uptime by helping operators identify and resolve faults quickly during production runs.

Question 9

Who makes the B Series?

Accepted Answer

The Marden Edwards B Series is manufactured by Marden Edwards, a UK-based specialist in overwrapping and bundling machinery with over 60 years of experience supplying packaging lines to the food, beverage, pharmaceutical and consumer goods industries. Marden Edwards machines are installed in tea and coffee factories worldwide, where they are used to overwrap retail cartons, multi-packs and premium gift boxes. In the Middle East and South Asia, Marden Edwards machines are represented and supported by dph Industries.

Question 10

How fast can tooling be changed?

Accepted Answer

Tooling changes on the B Series are designed to be fast — the quick-change tooling system allows format switchovers without specialist engineering support, typically in under 30 minutes for a trained operator. Fast changeovers are important for tea and coffee factories that run multiple SKU sizes on a single overwrapping line, reducing the downtime cost of switching between retail carton formats. Marden Edwards provides tooling sets for all common carton sizes, and dph can supply regional tooling support for the Middle East market.

Capacity	Up to 60 packs per minute (standard)
Specification	40 packs per minute (B Wide)
Pack Size Range	Length 50–305 mm, Width 25–250 mm, Height 10–150 mm
Pack Size Range (B Wide)	Length 50–450 mm, Width 55–300 mm, Height 10–150 mm
Weight	On request
Dimensions	On request

See it in action

Marden Edwards - ME B Series

Why producers choose the Marden Edwards - ME B Series

Overview

Specifications

Key features

See it in action

Frequently asked questions

You may also consider

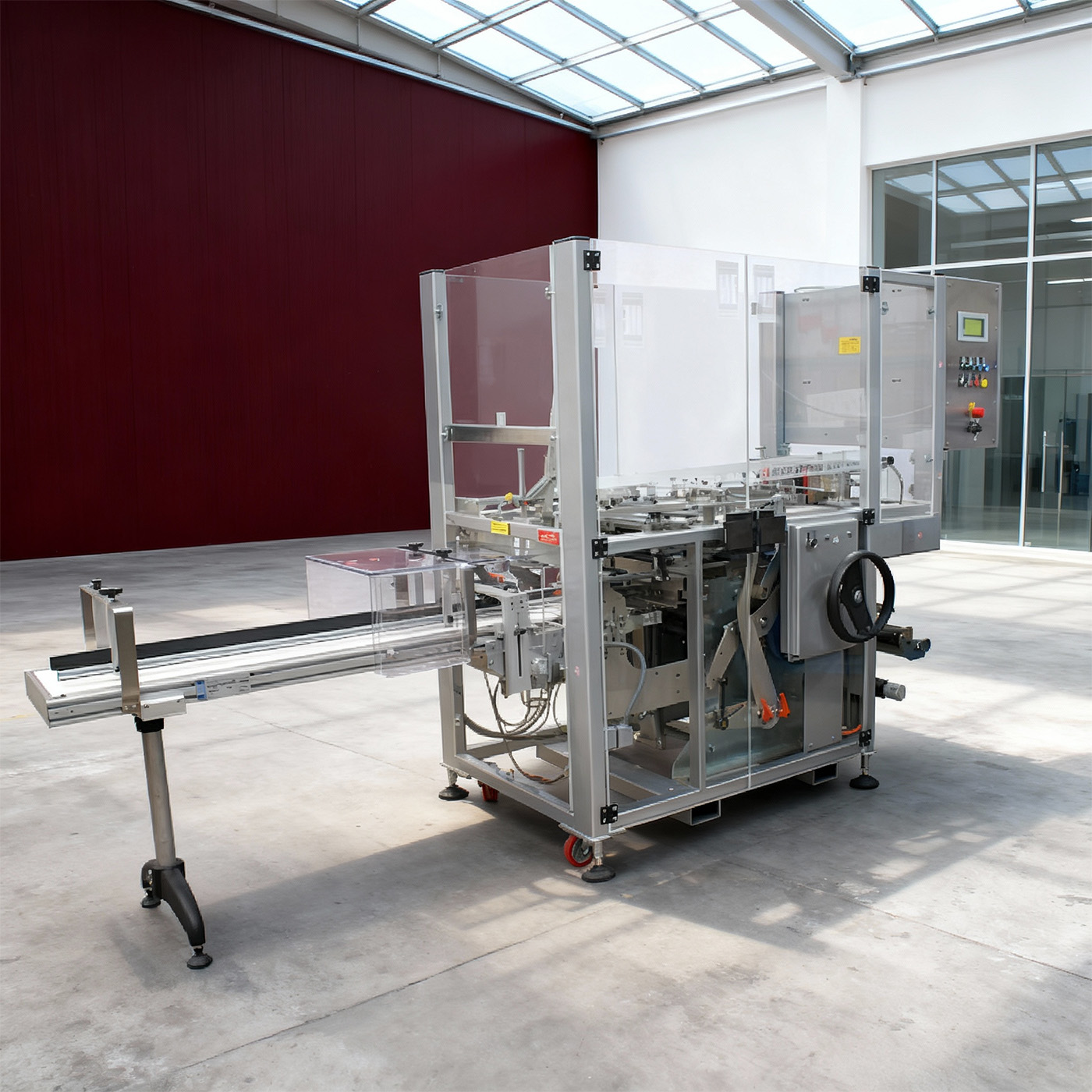

Marden Edwards - ME BX Series

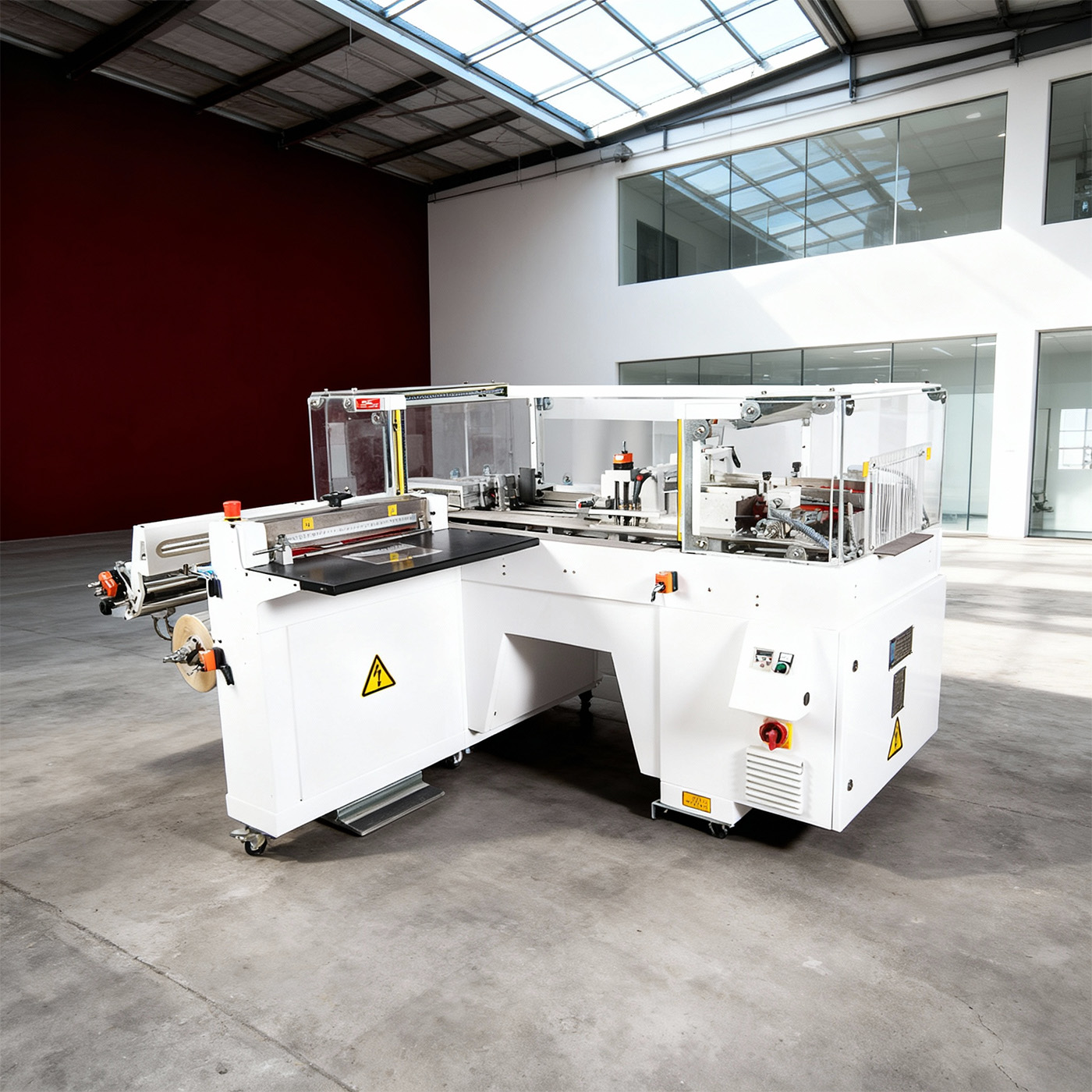

Marden Edwards - Semi Auto Series

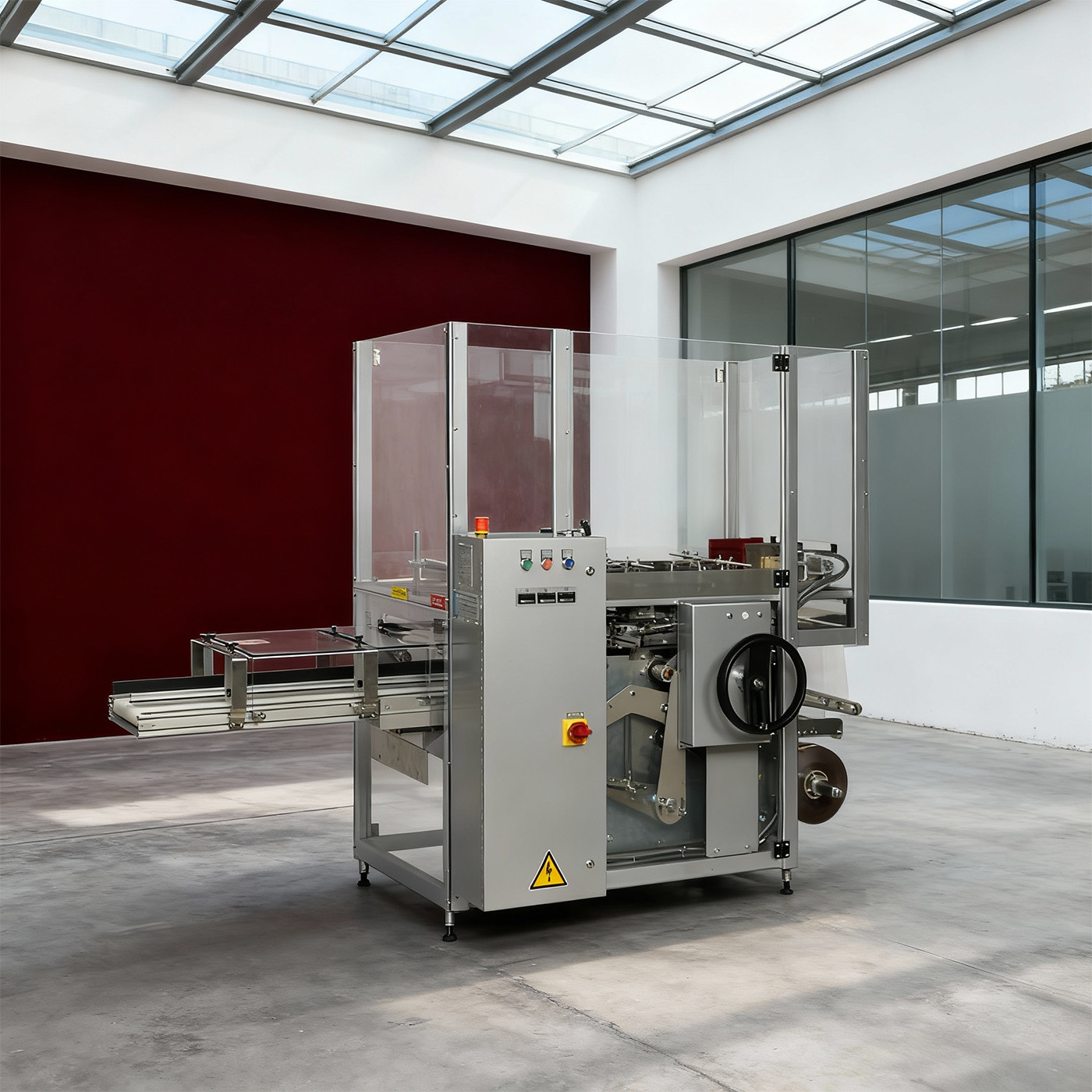

Marden Edwards - ME Evo Series

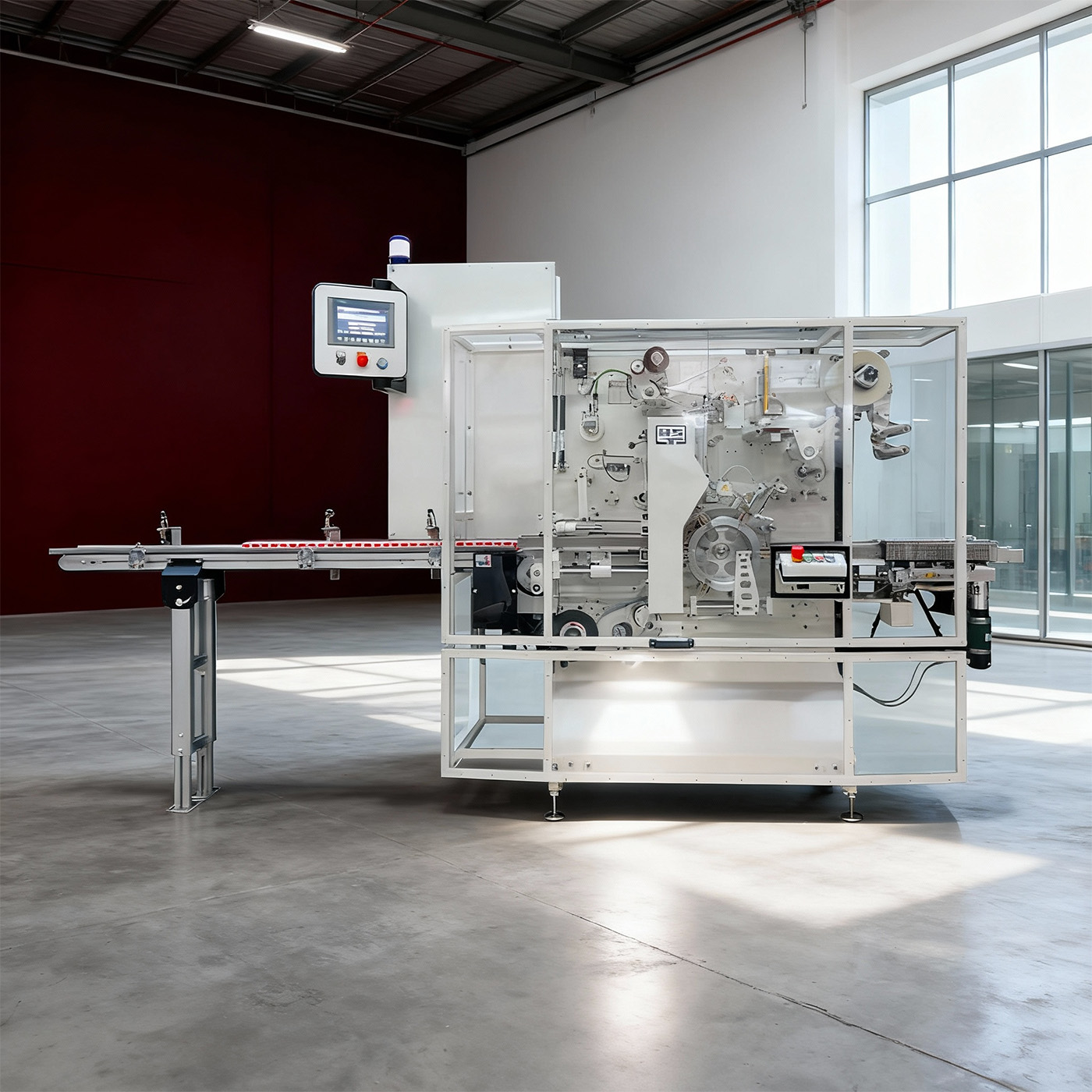

HST - ZE 30
