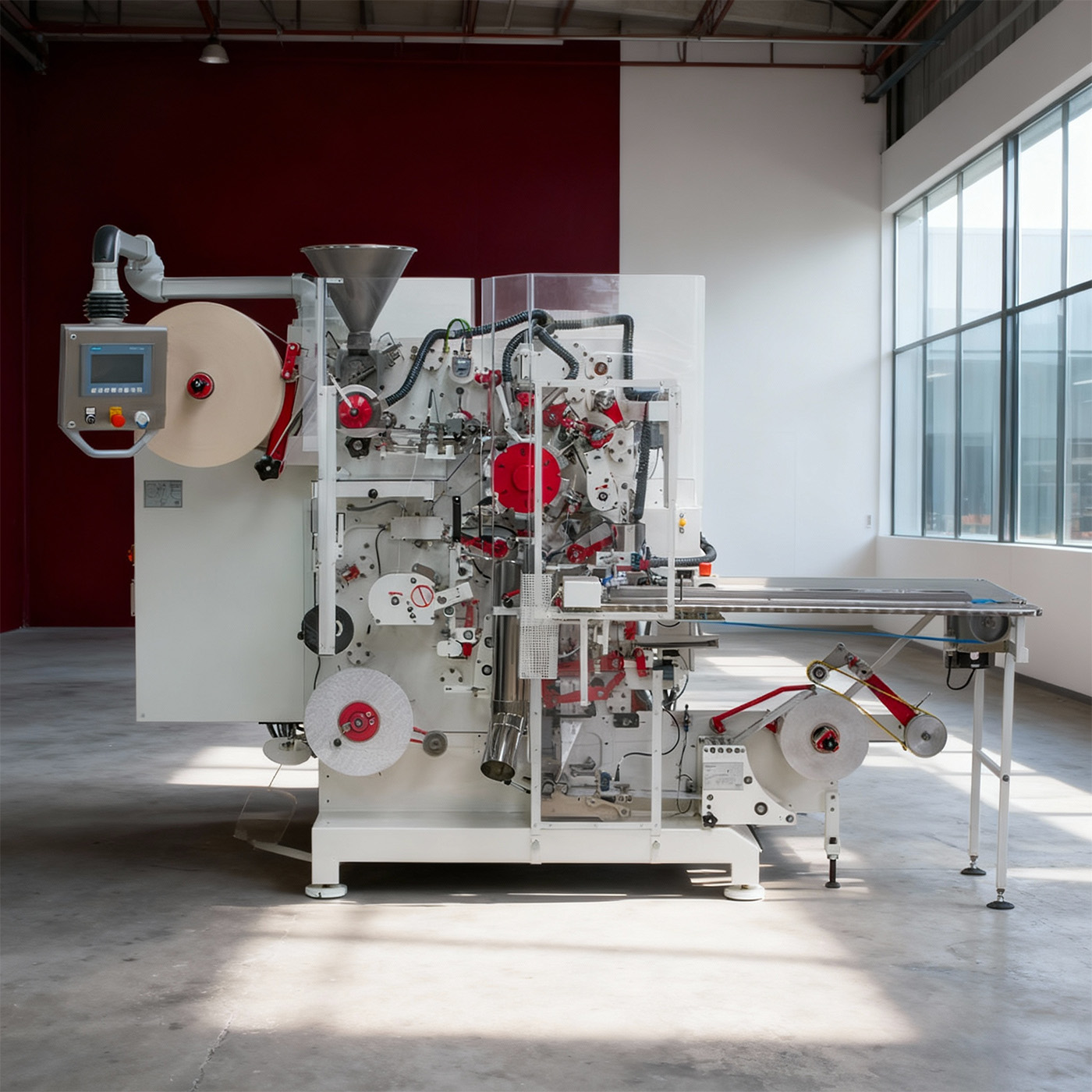

HST - PT33
Complete automatic teabag packaging machine for non heatsealable double chamber filter bags with string, hard tag; and knotted tea bags (low cost aluminum wire version also available). Each teabag is individually packed into aroma tight sealed foil envelope

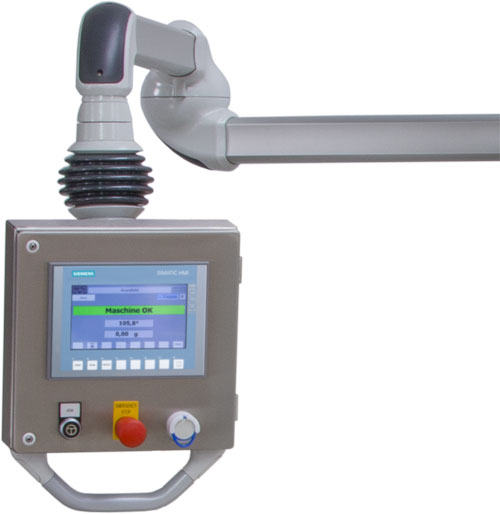

All machines are equipped with a Touch Panel KTP 700 and with a SPS S7 control and Software by Siemens!
heatsealed outer envelope
machine type:
automatic teabag packaging machine
bag format:
double chamber filter bags with string and tag
bag type:
heatsealed outer envelope
Top Features
44 x 64 mm / 40 x 60 mm / 59 x 80 mm / 44 x 60 mm
up to 165 heatsealed envelopes per minute
L 280 cm / W 120 cm / H 200 cm
1300 - 1850 kg
very low Energy consumption, less than 1 kW/h
Touch Panel KTP 700 and SPS S7
Technical service back-up system
New „state of the art“ design
bag size: A = 44 x 64 mm, B = 40 x 60 mm, C = 59 x 80 mm, D = 44 x 60 mm
tag size: E1 = 23 x 28 mm, E2 = 28 x 32 mm
heat seal outer envelope (HOE) size: bag size A,B,D= 64 x 75 mm
* not for bag size A ** only with knots
Packaging Solutions
- manual packing machine
P 33: with food grade aluminium staples
PT 133: with food grade aluminium staples to tag, with a knotting on the bag
PT 233: knotting to bag and tag
- single row cartoning device up to 25 teabags/box
PT 33.1: with food grade aluminium staples
PT 133.1: with food grade aluminium staples to tag, with a knotting on the bag
PT 233.1: knotting to bag and tag
- multirow cartoning device for boxes up to 100 teabags
PT 33.2: with food grade aluminium staples
PT 133.2: with food grade aluminium staples to tag, with a knotting on the bag
PT 233.2: knotting to bag and tag
Fact sheet
State of the Art
Low machine price
Low maintenance costs
Low spare part costs
Very low Energy consumption, less than 1 kW/h
German Engineering; 100% made in Germany
Easy to operate
and more
Mechanical driven machine therefore long life cycle
Easy to maintain
Hard Tag
Knotted bags
Compact size
High Flexiblity
Technical service back-up system
