dph Maschinenbau - Smart Line DC Large
Up To 16 g. Enveloped.
dph Maschinenbau
Drip Coffee Packaging Machine
Why producers choose the dph Maschinenbau - Smart Line DC Large
- Packs up to 16 g ground coffee per bag
- Fill-and-seal plus enveloping in one machine
- Vacuum feeder for consistent, accurate dosing
- Nitrogen flushing protects aroma and freshness
- Three formats: Rectangular, Cone, Skyline
- Output up to 36 bags/min (L-Size)
- Siemens PLC with Japanese servo and bearings
- Local installation, training and technical service
Overview
Built for the V60/high-grammage market—the Smart Line DC (L-Size) fills and envelopes up to 16 g drip coffee bags with vacuum dosing and nitrogen flush.

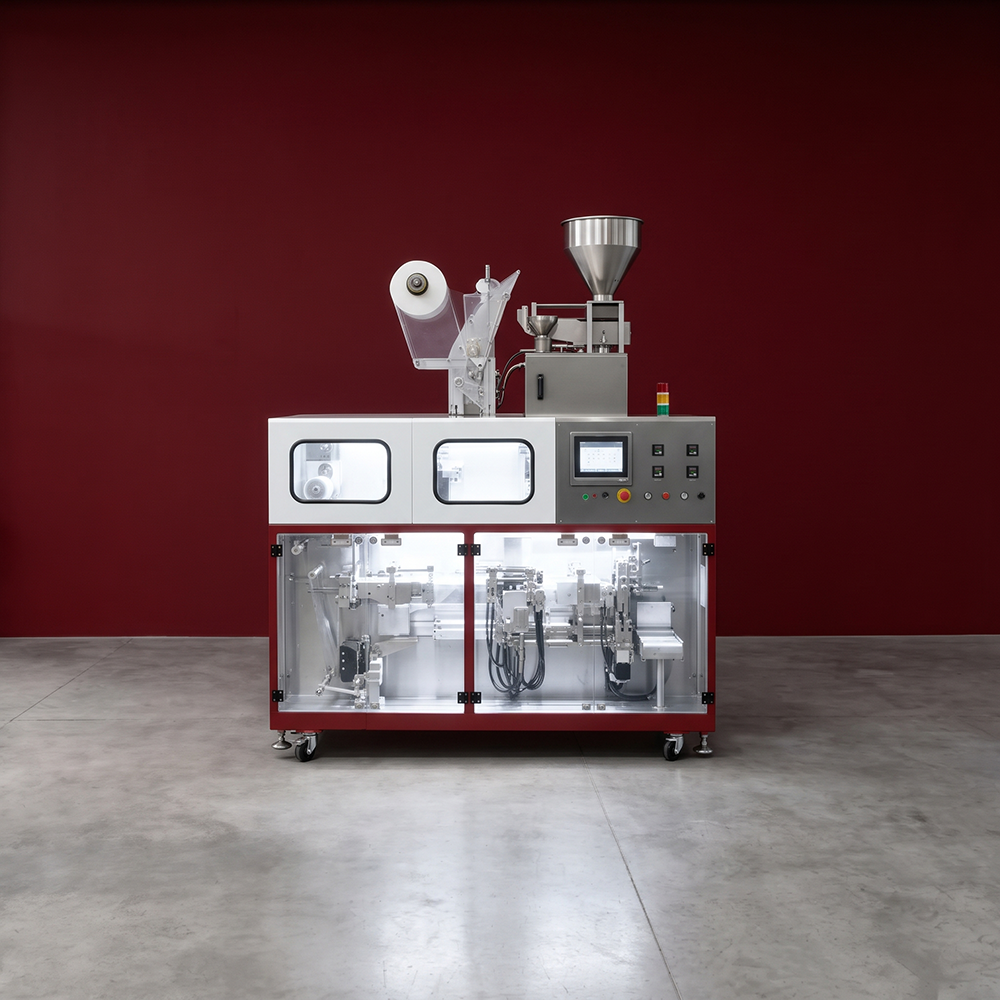

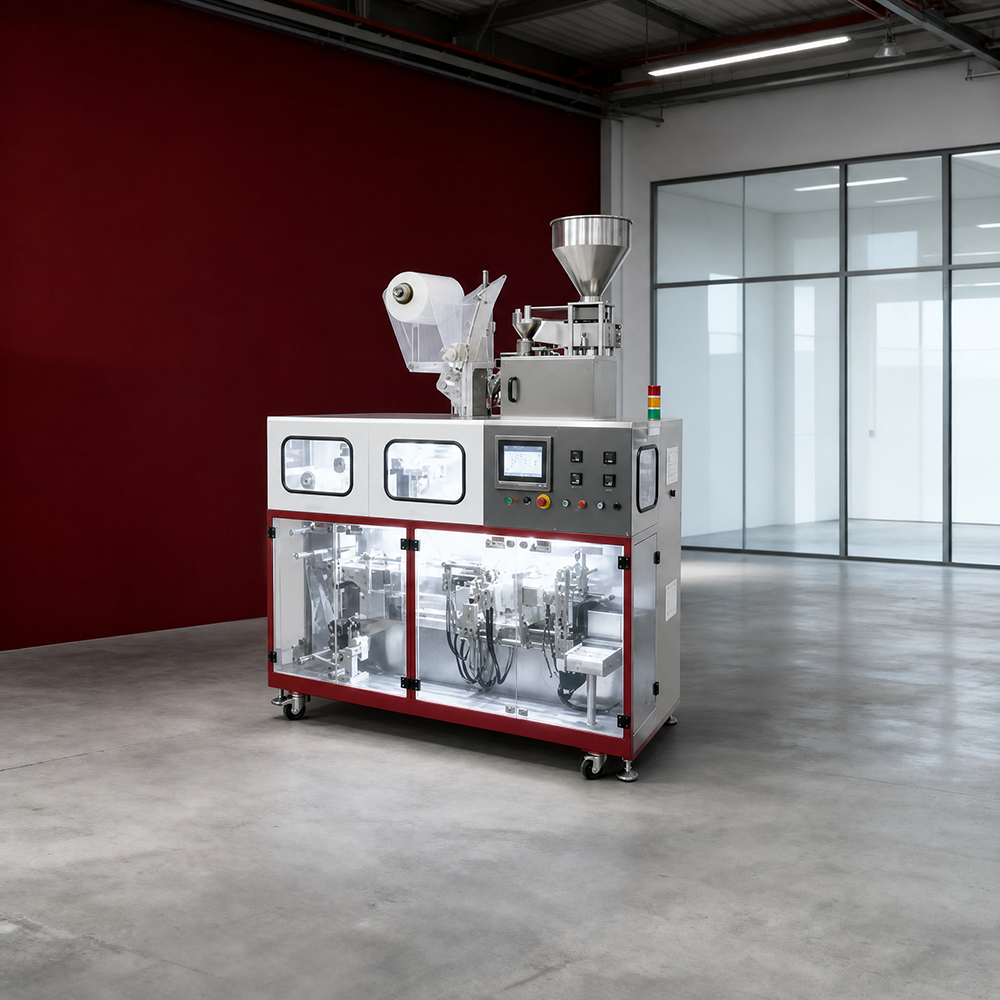

The Smart Line DC (L-Size) is dph Maschinenbau's drip coffee bag packaging machine for higher-grammage bags of up to 16 g ground coffee—developed for markets such as Saudi Arabia where the V60 pour-over standard demands a larger dose. It combines fill-and-seal of the drip coffee bag (Module 1) and the outer envelope (Module 2) in a single machine, using a vacuum feeder for consistent dosing and nitrogen flushing to protect aroma and freshness. It runs Rectangular, Cone and Skyline formats, each with an outer envelope, at up to 36 bags/min in the 16 g L-Size. An optional End-of-Line module (1×10 cartoning) is recommended above roughly 100 bags/min.
Manufactured by dph Maschinenbau, Made in China.
Specifications
| Dose | up to 16 g per bag (L-Size) |
| Output | up to 36 bags/min |
| Bag formats & dimensions | Rectangular/Cone/Skyline L-Size 110×130 mm |

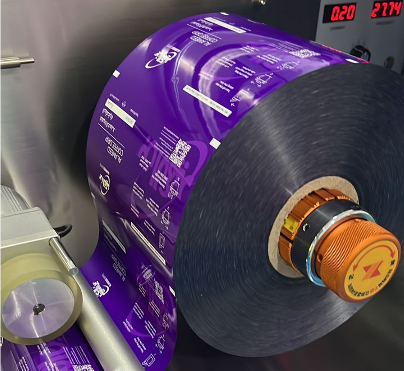

| Envelope | 110×130 mm heat-seal laminated film (Mopp/VMPET/PE, 0.1 mm / 10 µm) |
| Machine | 2000 (W) × 820 (L) × 2750 (H) mm, 1200 kg |
| Operators | 1 |
| Power | 3.5 kW (220 V) |
| Nitrogen | 220 V / 1 kW |
| Air pressure | >0.6 MPa. |
Key features
- Module 1 fill-and-seal of drip coffee bags + Module 2 enveloping in one machine
- Vacuum feeder for consistent dosing
- Nitrogen flushing for freshness

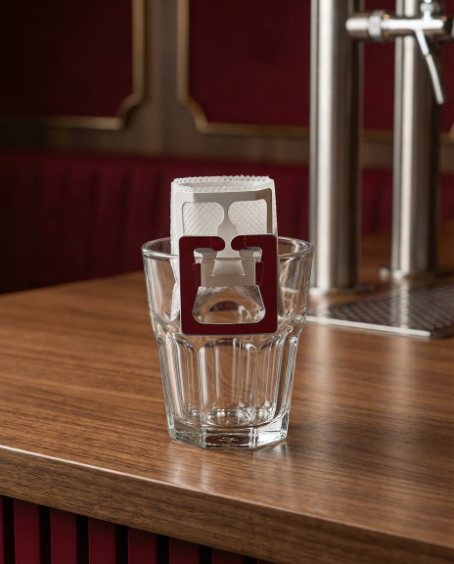

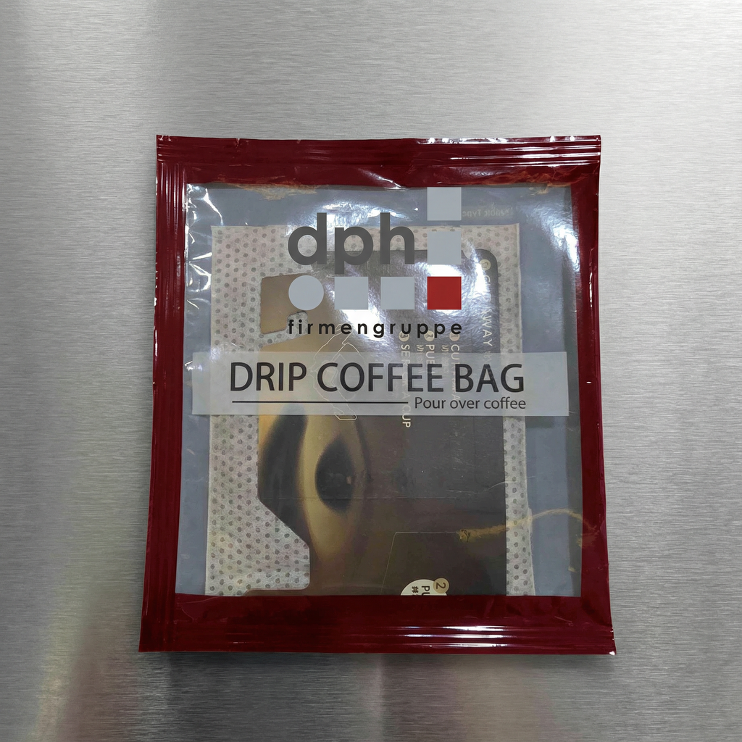

- Rectangular/Cone/Skyline formats with outer envelope
- Siemens PLC (Germany)
- Fuji servo (Japan)
- SMC/EMC cylinders
- THK bearings
- Small Kit (year 1) and Regular Kit (2–3 yr) spare-part sets
- 1-year warranty, local installation, training and service
- Optional End-of-Line 1×10 cartoning (from ~100 bags/min)
- Optional full branding of bags and envelope roll
