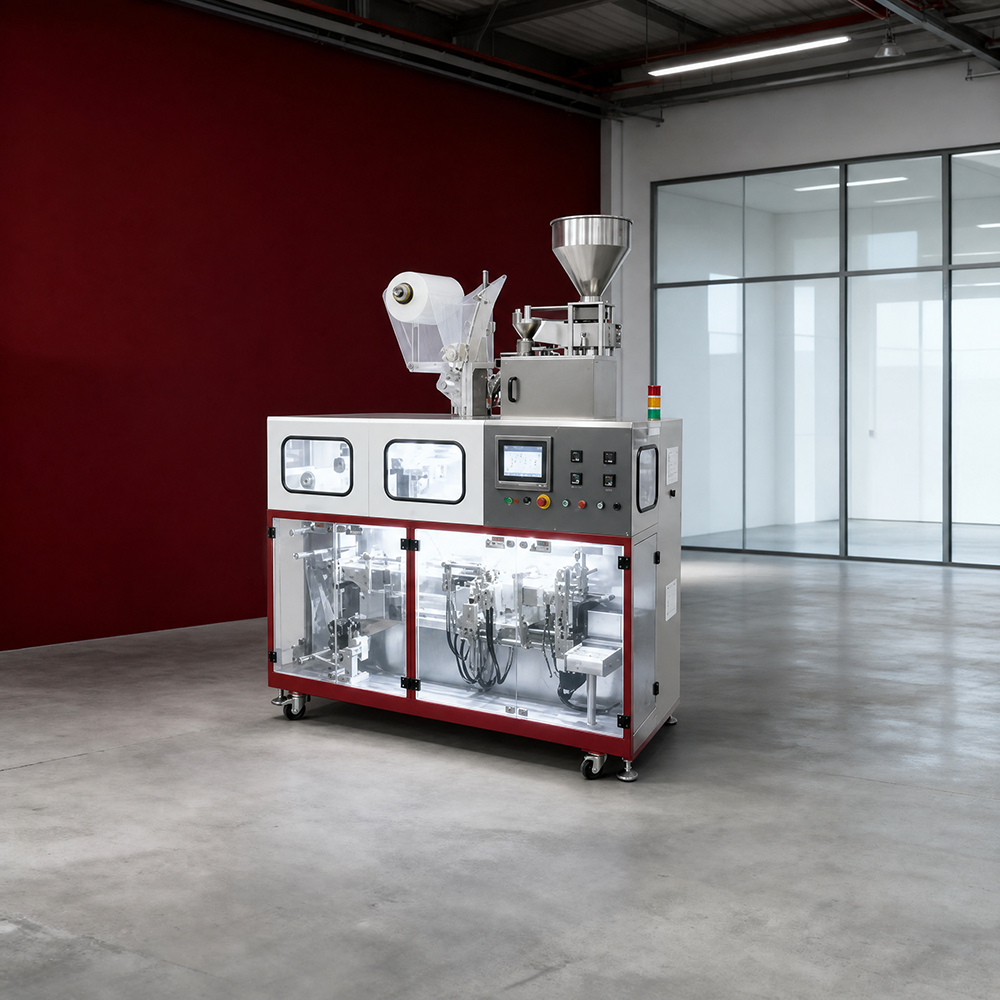

dph Maschinenbau - Smart Line DC Large
Manufacturer: dph Maschinenbau
Up To 16 g. Enveloped.
Learn More
dph Maschinenbau - Smart Line DC Standard
Standard Drip Coffee Bag. Enveloped.
dph Maschinenbau
Drip Coffee Packaging Machine
Why producers choose the dph Maschinenbau - Smart Line DC Standard
- Packs 10–13 g standard drip coffee bags
- Fill-and-seal plus enveloping in one machine
- Vacuum feeder for consistent, accurate dosing
- Nitrogen flushing protects aroma and freshness
- Three formats: Rectangular, Cone, Skyline
- Higher output up to 40 bags/min (standard)
- Siemens PLC with Japanese servo and bearings
- Local installation, training and technical service
Overview
The standard drip coffee bag line—the Smart Line DC fills and envelopes 10–13 g bags with vacuum dosing and nitrogen flush, at up to 40 bags/min.

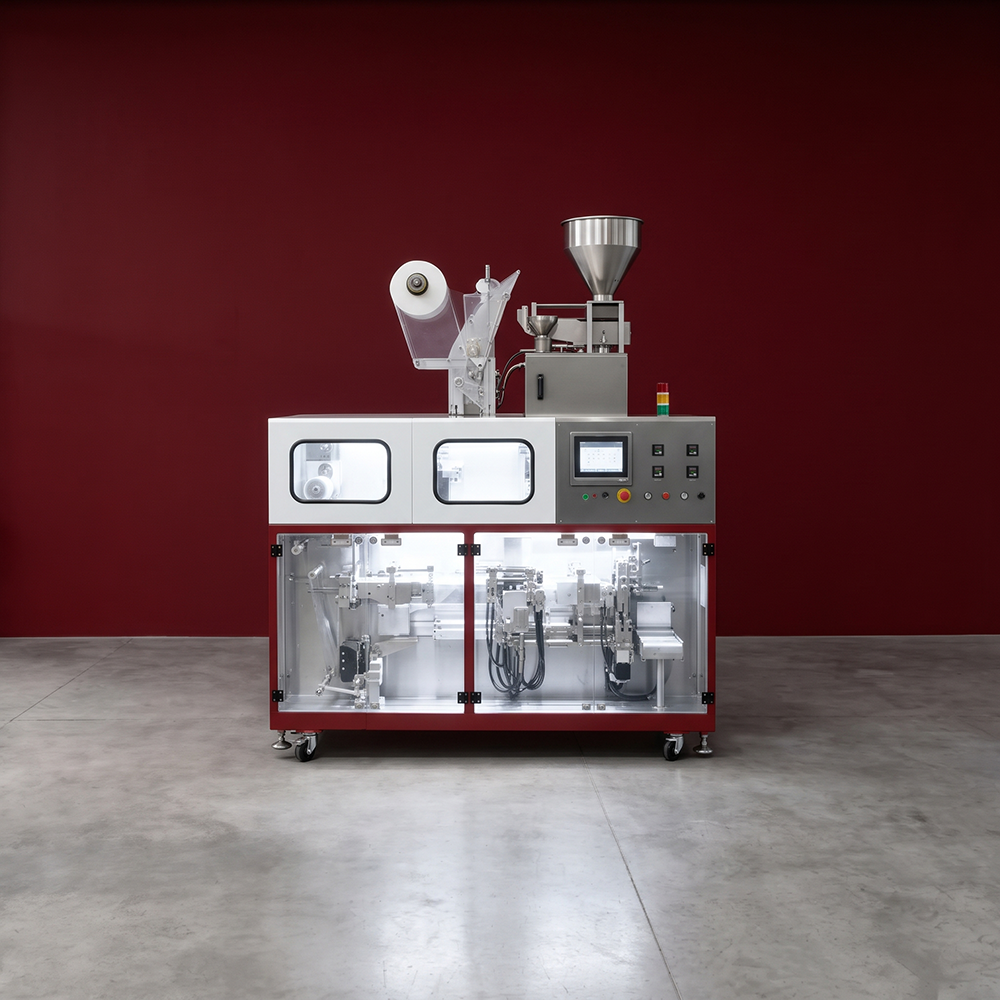

The Smart Line DC (standard) is dph Maschinenbau's drip coffee bag packaging machine for the standard 10–13 g rectangular drip coffee bag. It fills and seals the drip coffee bag (Module 1) and forms the outer envelope (Module 2) in a single machine, with a vacuum feeder for consistent dosing and nitrogen flushing to protect aroma and freshness. Rectangular, Cone and Skyline formats are supported, each with an outer envelope, at up to 40 bags/min in the standard grammage. An optional End-of-Line module (1×10 cartoning) is recommended above roughly 100 bags/min.
Manufactured by dph Maschinenbau, Made in China.
Specifications
| Dose | 10–13 g per bag (standard) |
| Output | up to 40 bags/min |

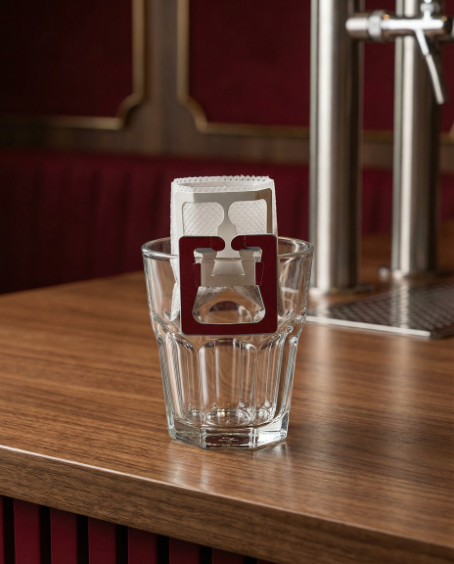

| Bag formats & dimensions | Rectangular 100×120 mm |
| Specification | Cone/Skyline 110×130 mm |

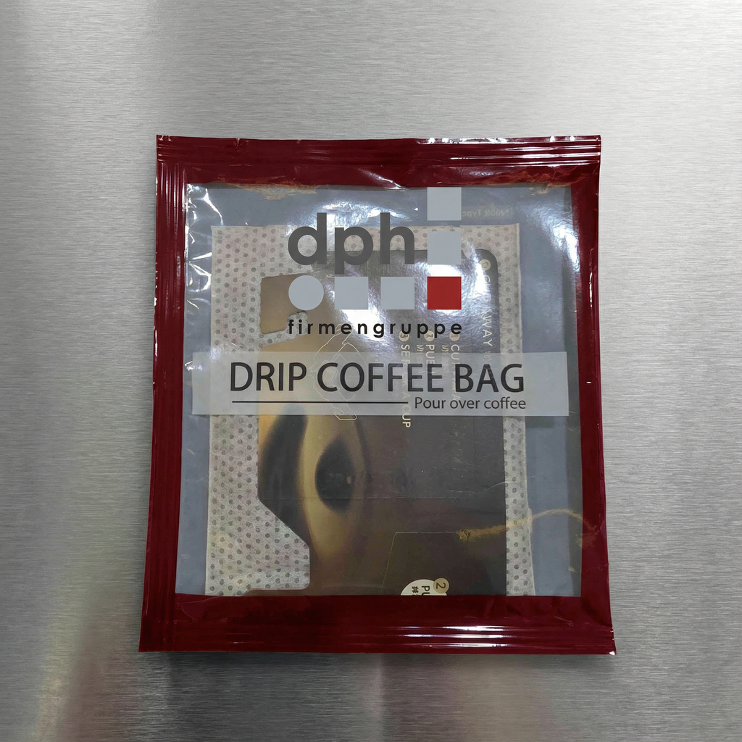

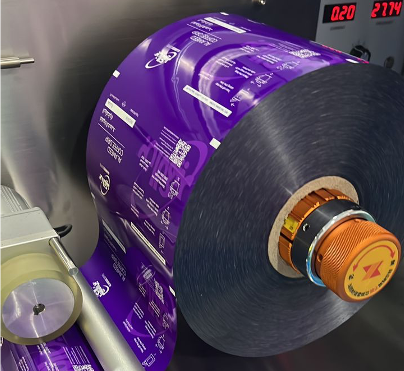

| Envelope | 110×130 mm heat-seal laminated film (Mopp/VMPET/PE, 0.1 mm / 10 µm) |
| Machine | 2000 (W) × 820 (L) × 2750 (H) mm, 1200 kg |
| Operators | 1 |
| Power | 3.5 kW (220 V) |
| Nitrogen | 220 V / 1 kW |
| Air pressure | >0.6 MPa. |
Key features
- Module 1 fill-and-seal of drip coffee bags + Module 2 enveloping in one machine
- Vacuum feeder for consistent dosing
- Nitrogen flushing for freshness
- Rectangular/Cone/Skyline formats with outer envelope
- Siemens PLC (Germany)
- Fuji servo (Japan)
- SMC/EMC cylinders
- THK bearings
- Small Kit (year 1) and Regular Kit (2–3 yr) spare-part sets
- 1-year warranty, local installation, training and service
- Optional End-of-Line 1×10 cartoning (from ~100 bags/min)
- Optional full branding of bags and envelope roll
